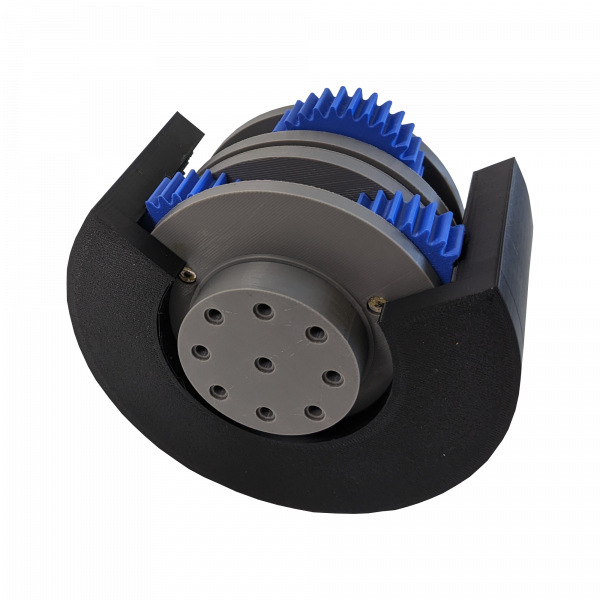

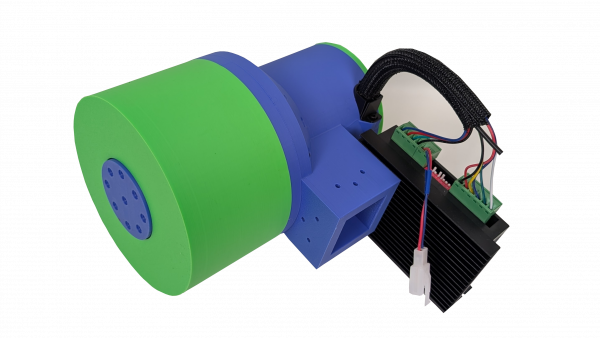

Planetary Gearbox
How to Build?
STL 3D-Printed Parts
1/5 1-Stage
STL-Parts:
ID1_Ring Gear 1-Stage / 1x
ID2_Planet Gear / 3x
ID3_Sun Gear Nema17 / 1x
ID8_Sun Gear Nema23 / 1x
1/7 1-Stage
STL-Parts:
ID9_Ring Gear 1-Stage / 1x
ID10_Planet Gear / 3x
ID11_Sun Gear Nema17/ 1x
ID16_Sun Gear Nema23 / 1x
1/25 2-Stage
STL-Parts:
ID6_Carrier Gear Output / 1x
ID7_Ring Gear 2-Stage / 1x
ID2_Planet Gear / 6x
ID3_Sun Gear Nema17 / 1x
ID8_Sun Gear Nema23 / 1x
1/49 2-Stage
STL-Parts:
ID14_Carrier Gear Output / 1x
ID15_Ring Gear 2-Stage / 1x
ID10_Planet Gear / 6x
ID11_Sun Gear Nema17 / 1x
ID16_Sun Gear Nema23 / 1x
Universal
STL-Parts:
ID4_Carrier Bottom / 1x-2x
ID5_Carrier Output / 1x
ID17_Gear Closing Universal / 1x
ID18_Mount Nema17 / 1x
ID19_Mount Nema23 / 1x
Hardware Parts
1-Stage
Hardware:
Insert Nut M3 / OD: 5mm / Length: 6mm / Count: 28
Ball Bearing 608 ZZ / Size: 8*22*7 / Count: 6
Ball Bearing 6800ZZ / Size: 10*19*5 / Count: 1
Countersunk Screw M3 / Length: 30mm / Count: 3
2-Stage
Hardware:
Insert Nut M3 / OD: 5mm / Length: 6mm / Count: 31
Ball Bearing 608 ZZ / Size: 8*22*7 / Count: 12
Ball Bearing 6800ZZ / Size: 10*19*5 / Count: 2
Countersunk Screw M3 / Length: 30mm / Count: 6
Universal
Hardware:
Insert Nut M3 / OD: 5mm / Length: 10mm / Count: 9
Insert Nut M3 / OD: 5mm / Length: 5mm / Count: 1
Ball Bearing 6811-2RS / Size: 55*72*9 / Count: 1
Ball Bearing 6805-2RS / Size: 25*37*7 / Count: 1
Bolt Screw M3 / Length: 6mm / Count: 1
Bolt Screw M3 / Length: 12mm / Count: 5
Bolt Screw M3 / Length: 14mm / Count: 5
Bolt Screw M3 / Length: 16mm / Count: 10
