Product Description

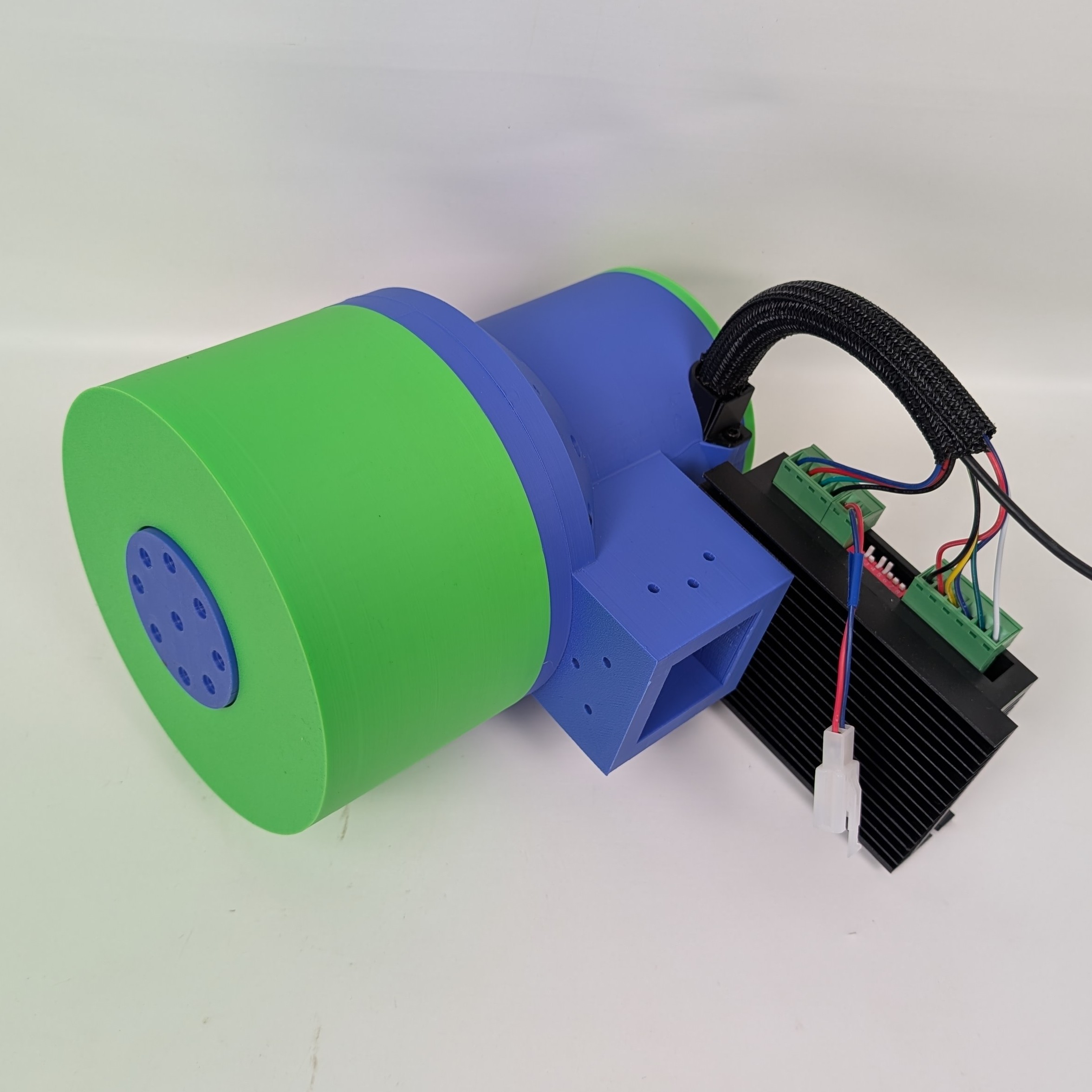

- Self-Leveling Drive: This set is an expansion kit for the Planetary Gearbox, which can be used to build a self-leveling drive system.

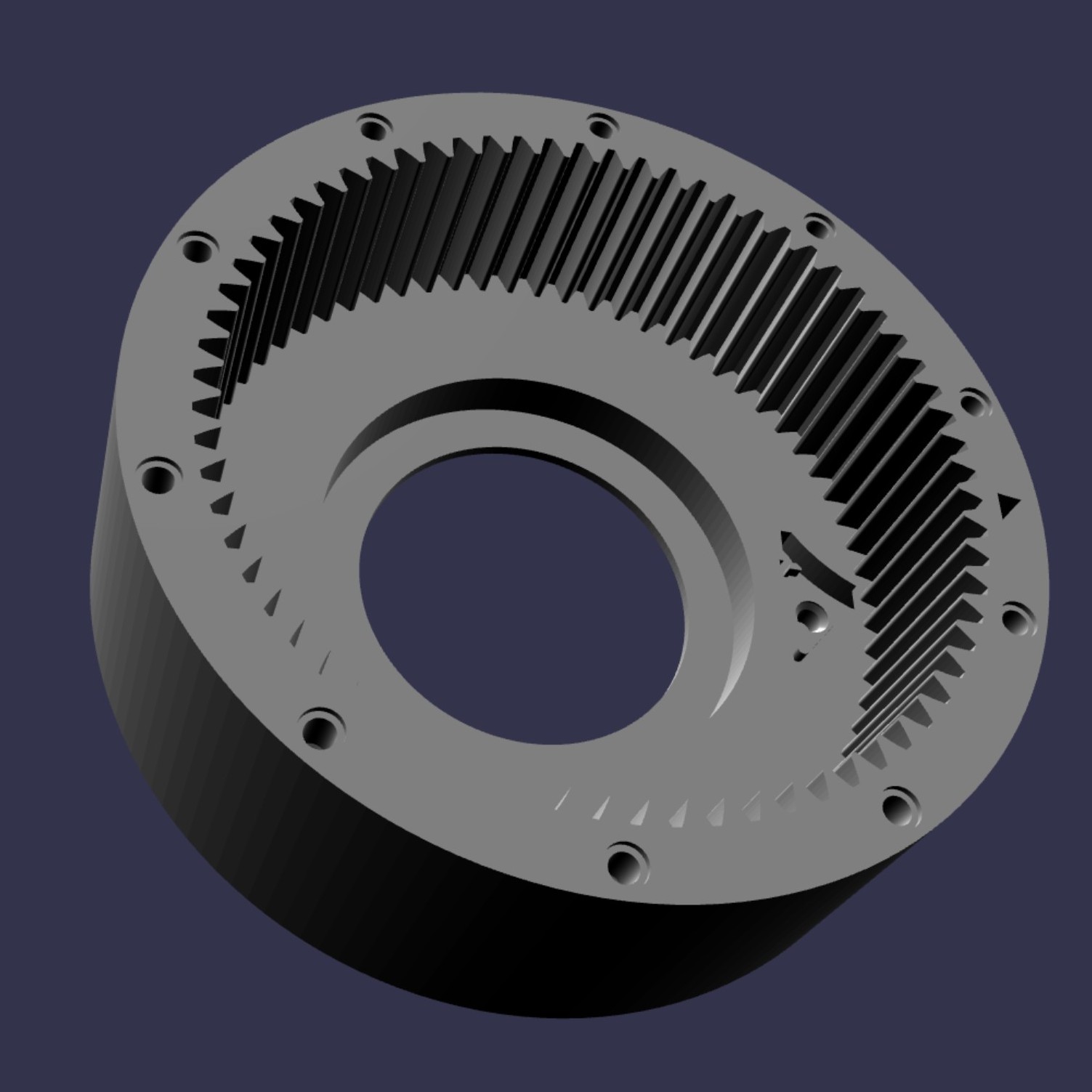

A reed switch and a Raspberry Pi Pico let it home itself, then hit any absolute angle, down to 0.018° per step.
- Self-homing — references itself on a reed switch, every time
- 0.018° resolution —Down to ~0.018°/step (at 400 steps/rev × 49:1 — scales with your microstep setting)
- Absolute angles + auto-oscillation — move, sweep, repeat
If you’re looking to start building robots or simply experiment, this set is perfect for you. It allows you to create a gearbox that can level itself like a 3d printer.
After making the purchase, you can download the files and get started right away.
What’s in the box?

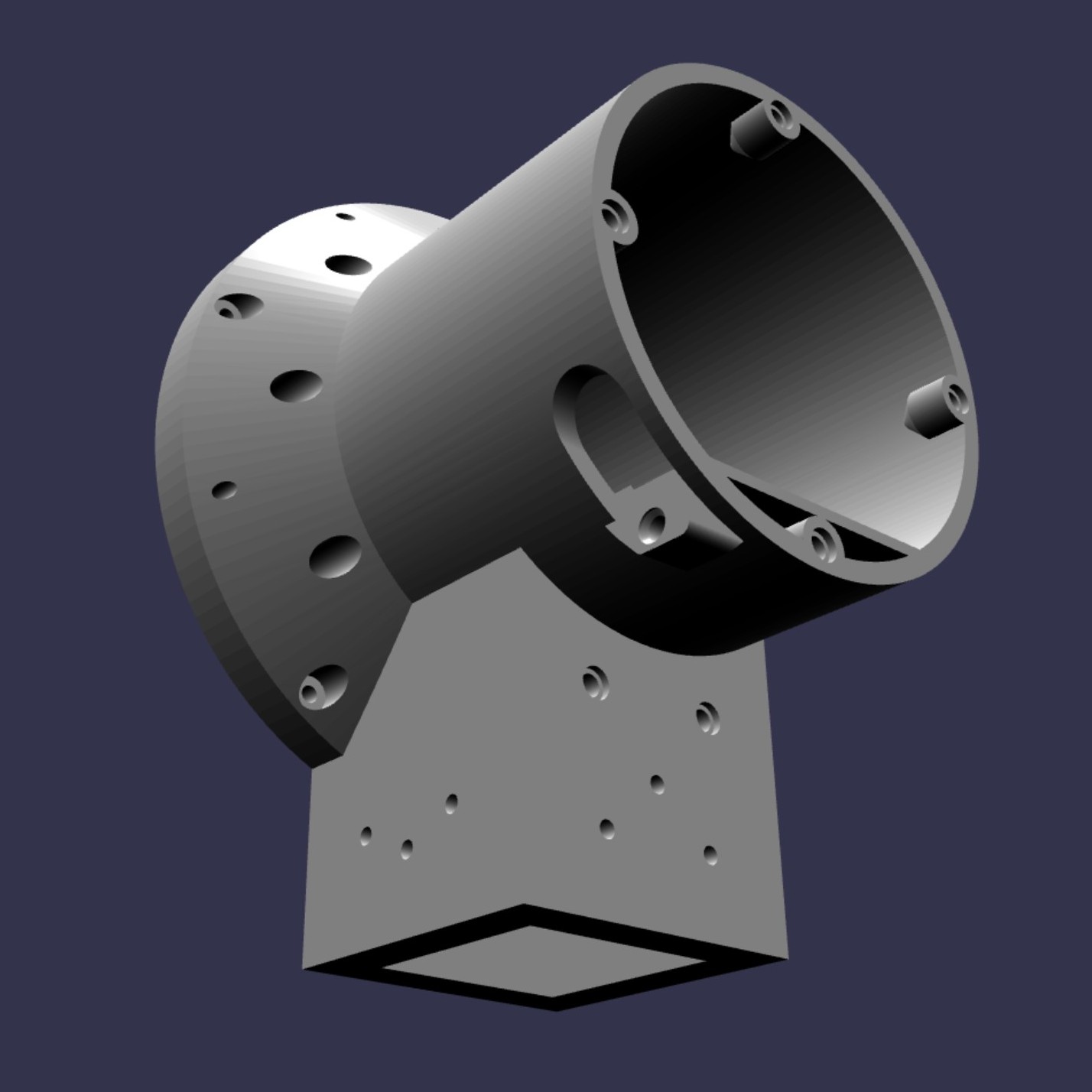

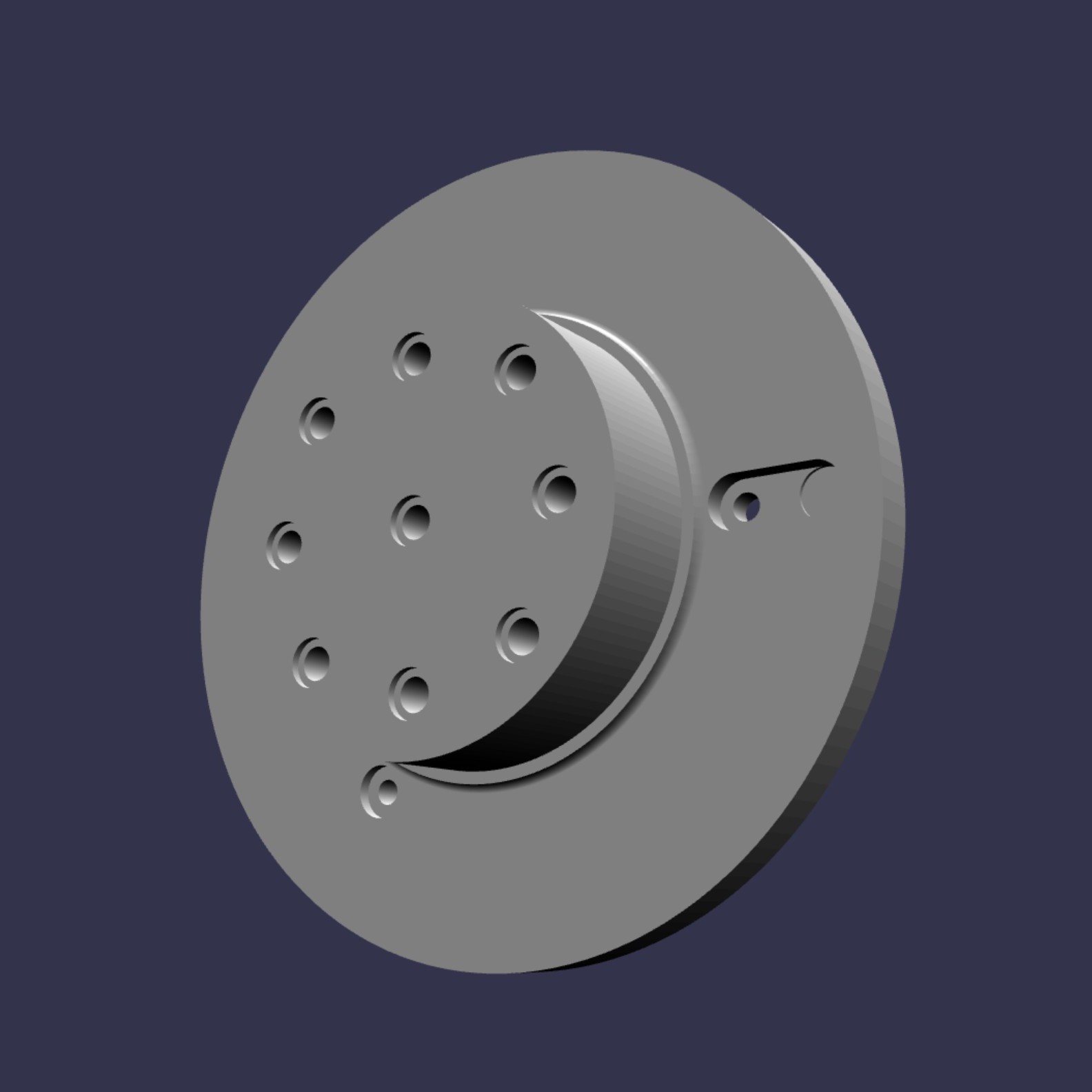

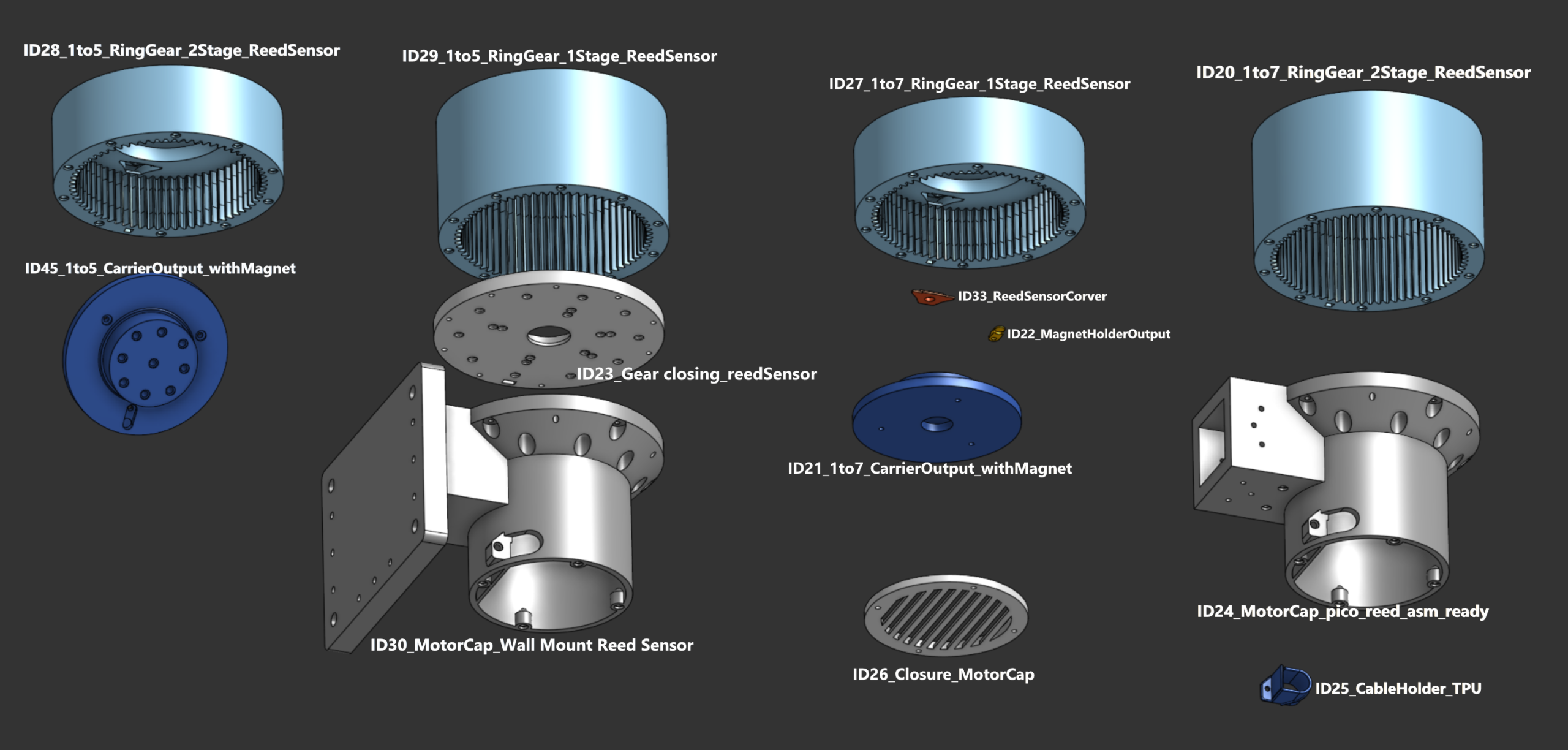

- Self-Leveling Drive Extension (STL)
- Software Components (Python scripts)
- Parts and printing list (Excel)
Not Included: Hardware components such as screws, nuts, and ball bearings.
Technical Details
Gearbox
Compatible with all gearboxes from my Planetary Gearbox.
This gearbox uses Nema stepper motors 17 or 23.
Product Dimensions
- Height: 168mm; Width: 195mm; Depth: 138mm
Degree of freedom
- 1 DOF
Software
This set includes the software for controlling the motor and sensor on the Raspberry Pi Pico,
as well as PC software that allows everything to be controlled.
